HydraPanel

Optical

Item Code: FP6
LED Source: Titan LED Source
Colors: RGBMintAmber
Total LED power: 25W
LED consumption: 17W
Luminous Flux @3200K: 1102 Lumens
Luminous Flux @4000K: 1287 Lumens
Luminous Flux @5500K: 1298 Lumens
Illumination 3200 K @ 1m: 443 Lux
Illumination 4000 K @ 1m: 512 Lux
Illuminance 5500 K @ 1m: 516 Lux
CRI (Ra)/ TLCI 3200-6500K*: ≥96
Beam angle I/2: 110° x 100°
Beam angle I/10: 150° x 145°
Strobe: 0 – 25Hz
pixels: 6


Electric
Battery Life: Up to 20 hours
Battery Life Output @100%: 1h 45m
Battery life: 70% after 300 cycles
Charging time (nominal): 3 hours
Power supply: DC 24VDC – 0.85 A
Connector: DC 5.5mm x 2.1mm

control

Wired DMX: Yes Via FP1-PWB/FP3-DTL/PWB2-86
Receiver: Integrated
BTB Bluetooth Bridge: Built-in
Wireless protocols: CRMX, UHF, Bluetooth, WiFi
Range Wireless protocols: « CRMX/UHF Up to 300 m / 330 yds
Bluetooth: up to 3m / 3.3 yds”
Infra-Red Control: Yes
ControlSync: Yes
Linear touch control: Yes


Construction

Case Material: Polymer & Metal
Ingress Protection: IP65
Ambient operating temperature: 0 – 40°C / 32 – 104°F
Weight: 604g / 1.3lbs
Dimensions L x W x D: 166mm x 85mm x 43.5mm / 6.53″ x 3.34″ x 1.71″

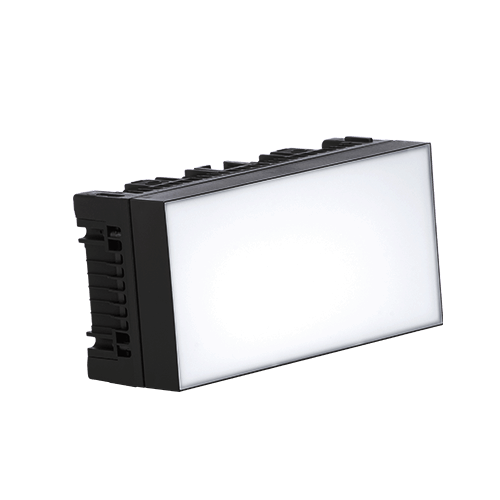

Astera FP6 HydraPanel LED Light
flexible base
Leaf Diffuser 100
Intensifier 80
Soft frame 100
Egg crate 40
Egg crate 60
Gel holders
Connection plate
BabyPin 1/4"
2 year limited warranty
6 month limited warranty (battery)

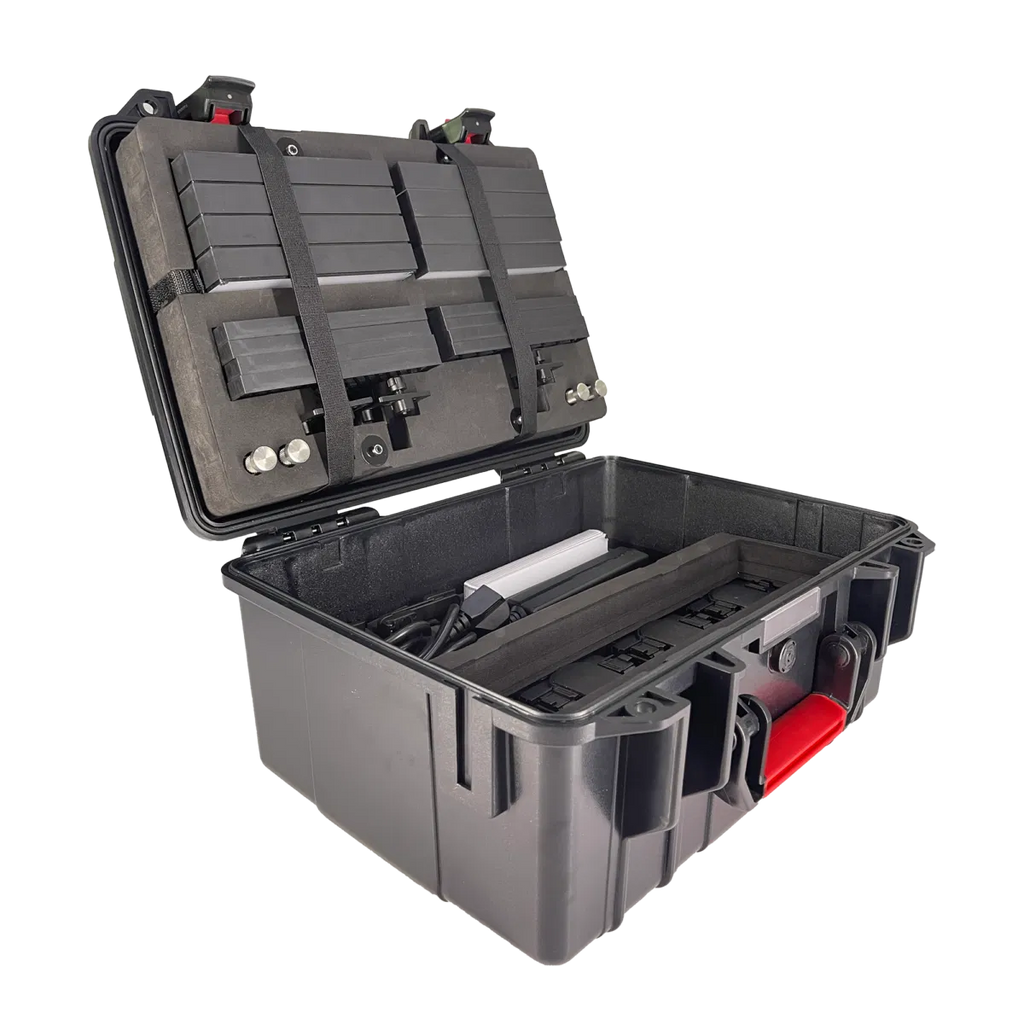

4 x Astera Hydra Panel with charging case
4x FlexBase
4 x Diffuser Sheet 100
4 x Intensifier 80
4 x soft frame 100
4 x Egg Crate 40
4 x Egg Crate 60
4 x gel holder
3 x connection plate
4 x Baby Pin 1/4"
2 year limited warranty
6 month limited warranty (battery)
