ARRI LED Panneaux Blue Orbiter DopPRO
ARRI LED Panneaux Orbiter DopPRO
ARRI LED Panneaux Black Orbiter DopPRO
Roll over image to zoom in Click on image to zoom
ARRI LED Panneaux Blue Orbiter DopPROARRI LED Panneaux Orbiter DopPROARRI LED Panneaux Black Orbiter DopPRO

Orbit

ARRISKU: L1.0033520
Color: Blue
Price:
£3,967.00
Stock:
Only 2 units left

Pickup available at DOPPRO Warehouse

Usually ready in 4 hours

Description

ARRI - L1.0033520/21

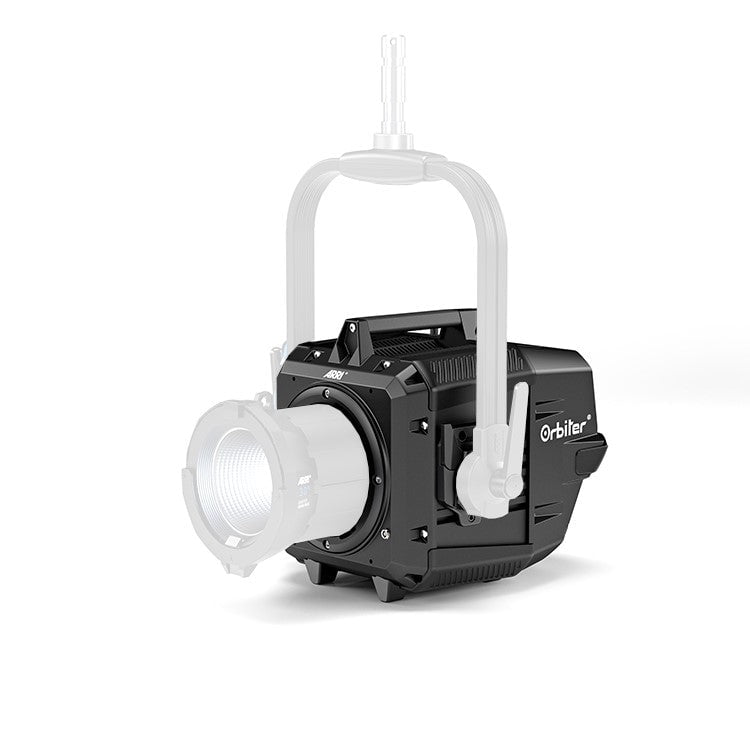

ARRI Orbiter Open face 600W WITHOUT lyre, optics, control panel, power cables

ARRI Orbiter features the Spectra light engine with a processor four times faster than the SkyPanel series and 125x more memory. In order to produce extra fine color tuning, the light engine adds amber, cyan and lime to the standard red, green and blue LED colors in its 190 LED array. Capable of creating harsh shadows with defined edges, the Orbiter's motor is 76 times smaller than an ARRI L10 Fresnel but has greater power while consuming the same amount of power.

  • ARRI Spectra 6-LED Engine RGB-Amber-Cyan-Lime
  • LiOS2 operating system
  • Open face optics 15, 30 and 60°
  • Projection optics 15, 25 and 35°
  • Flicker-free dimming from 0 to 100%, wireless DMX
  • Quick Accessory Attachment (QLM)
  • Infinite accessorization with optics, Fresnel, domes, Octa, etc...
  • Power supply with 48V 3-Pin XLR battery input
  • Edison Mains Power Connector

*Attention projector sold alone WITHOUT moving head, optics, control panel, power cables

1x ARRI Orbiter

*Attention projector sold alone WITHOUT moving head, optics, control panel, power cables

Light aperture: 42 mm / 1.66" (without optics)

Beam angle: 80° Half Peak Angle (without optics)

Weight :
Device alone: ​​11.7 kg
Manual version: 14.2 kg
Pole Op version: 14.9 kg

Mounting: 28mm Spigot (Junior Pin)

Angle of inclination :
+/-90° in a dry place, +75° / -90° in a humid place with rain cover

Voltage input range:
100 - 240 V~, 50 - 60 Hz

Power consumption :
400W Nominal, 500W Maximum

Mains power connection
powerCON TRUE1 TOP
(bare ends / Schuko / Edison, Japanese, Chinese cables available)

Battery connector:
3-pin XLR (Pin 1: negative, pin 2: positive)

Battery DC voltage range:
48 - 52 V⎓

White light calibration:
Continuously variable correlated color temperature from 2000K to 20000K

Connectivity:
Removable control panel via PoE, 5-pin XLR input and output, EtherCON input and output, 2 x USB-A, USB-C, SD card, camera synchronization

Input control options:
Wireless control via LumenRadio CRMX* (DMX and RDM), Full implementation of the RDM E1.20 standard with custom and standard RDM controls

* Brand: LumenRadio AB, Equipment: CRMX TiMo, Model: 200-1502, Product: Orbiter 2.4G Wireless Command Module, Frequency Range: 2402 - 2480 MHz, Operating Frequency: 2402 - 2480 MHz, Output Power: 17.51 ​​dBm, number Number of channels: 79, channel spacing: 1 MHz, modulation type: GFSK

Operation at room temperature:
-20 to +45°C (-4 to +113°F)

Protection class:
IP 20 without rain cover
IP24 with rain cover L2.0037805

Estimated LED lifetime (L70):
50,000 hours

Estimated Color Change Over Life (CCT):
+/- 5%

Certificates:
CB, CE, ENEC, cNRTLus, ICES, FCC, PSE, MIC, KC, SRRC, RCM, IFT, TRA, ETA, ANATEL, ENACOM, NTC

3200K: up to 138,000 lux @ 1 meter
5600K: up to 178,000 lux @ 1 meter
(find the complete photometric test on https://microsites.arri.com/oublier/oublier-tech-specs.html )

3200K to 5600K:
+/- 100K (nominal)
+/- 1/8 Green-Magenta (nominal)

3,200K to 5,600K:
Average CRI > 98
Average TLCI > 95
TM-30 Average > 94
